Volume flow sensor short, socket connection

Katalogový list

Popis

with Venturi injector according DIN EN ISO 5167-1

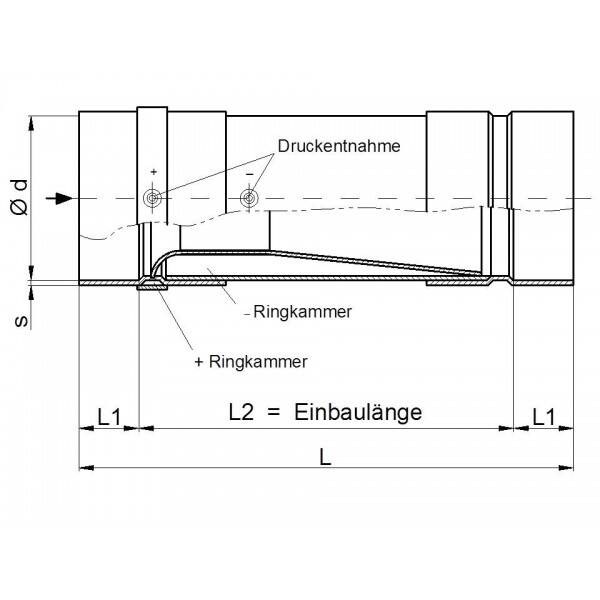

Volume flow sensor short, socket connection
PVC
d
 L
 L1
 L2
 s PVC
 s PP-Basis
 Obj.kód
 Poptávka
0110m
270
40
190
3,0
3,5
vsml1-0110m
0125m
300
40
220
3,0
3,5
vsml1-0125m
0140m
320
40
240
3,0
3,5
vsml1-0140m
0160m
360
40
280
4,0
3,5
vsml1-0160m
0180m
380
40
300
4,0
3,5
vsml1-0180m
0200m
420
50
320
4,0
3,5
vsml1-0200m
0225m
480
50
380
4,0
3,5
vsml1-0225m
0250m
580
50
480
4,0
3,5
vsml1-0250m
0280m
540
50
440
4,0
3,5
vsml1-0280m
0315m
600
50
500
4,0
3,5
vsml1-0315m
0355m
650
50
550
4,0
6,0
vsml1-0355m
0400m
750 (770)*
50 (60)*
650
4,0
6,0
vsml1-0400m
0450m
850
50
750
4,0
6,0
vsml1-0450m
0500m
950
50
850
4,0
6,0
vsml1-0500m
PPs
d
 L
 L1
 L2
 s PVC
 s PP-Basis
 Obj.kód
 Poptávka
0110m
270
40
190
3,0
3,5
vsml2-0110m
0125m
300
40
220
3,0
3,5
vsml2-0125m
0140m
320
40
240
3,0
3,5
vsml2-0140m
0160m
360
40
280
4,0
3,5
vsml2-0160m
0180m
380
40
300
4,0
3,5
vsml2-0180m
0200m
420
50
320
4,0
3,5
vsml2-0200m
0225m
480
50
380
4,0
3,5
vsml2-0225m
0250m
580
50
480
4,0
3,5
vsml2-0250m
0280m
540
50
440
4,0
3,5
vsml2-0280m
0315m
600
50
500
4,0
3,5
vsml2-0315m
0355m
650
50
550
4,0
6,0
vsml2-0355m
0400m
750 (770)*
50 (60)*
650
4,0
6,0
vsml2-0400m
0450m
850
50
750
4,0
6,0
vsml2-0450m
0500m
950
50
850
4,0
6,0
vsml2-0500m
PP
d
 L
 L1
 L2
 s PVC
 s PP-Basis
 Obj.kód
 Poptávka
0110m
270
40
190
3,0
3,5
vsml3-0110m
0125m
300
40
220
3,0
3,5
vsml3-0125m
0140m
320
40
240
3,0
3,5
vsml3-0140m
0160m
360
40
280
4,0
3,5
vsml3-0160m
0180m
380
40
300
4,0
3,5
vsml3-0180m
0200m
420
50
320
4,0
3,5
vsml3-0200m
0225m
480
50
380
4,0
3,5
vsml3-0225m
0250m
580
50
480
4,0
3,5
vsml3-0250m
0280m
540
50
440
4,0
3,5
vsml3-0280m
0315m
600
50
500
4,0
3,5
vsml3-0315m
0355m
650
50
550
4,0
6,0
vsml3-0355m
0400m
750 (770)*
50 (60)*
650
4,0
6,0
vsml3-0400m
0450m
850
50
750
4,0
6,0
vsml3-0450m
0500m
950
50
850
4,0
6,0
vsml3-0500m
PE
d
 L
 L1
 L2
 s PVC
 s PP-Basis
 Obj.kód
 Poptávka
0110m
270
40
190
3,0
3,5
vsml4-0110m
0125m
300
40
220
3,0
3,5
vsml4-0125m
0140m
320
40
240
3,0
3,5
vsml4-0140m
0160m
360
40
280
4,0
3,5
vsml4-0160m
0180m
380
40
300
4,0
3,5
vsml4-0180m
0200m
420
50
320
4,0
3,5
vsml4-0200m
0225m
480
50
380
4,0
3,5
vsml4-0225m
0250m
580
50
480
4,0
3,5
vsml4-0250m
0280m
540
50
440
4,0
3,5
vsml4-0280m
0315m
600
50
500
4,0
3,5
vsml4-0315m
0355m
650
50
550
4,0
6,0
vsml4-0355m
0400m
750 (770)*
50 (60)*
650
4,0
6,0
vsml4-0400m
0450m
850
50
750
4,0
6,0
vsml4-0450m
0500m
950
50
850
4,0
6,0
vsml4-0500m
PPs-el
d
 L
 L1
 L2
 s PVC
 s PP-Basis
 Obj.kód
 Poptávka
0110m
270
40
190
3,0
3,5
vsml5-0110m
0125m
300
40
220
3,0
3,5
vsml5-0125m
0140m
320
40
240
3,0
3,5
vsml5-0140m
0160m
360
40
280
4,0
3,5
vsml5-0160m
0180m
380
40
300
4,0
3,5
vsml5-0180m
0200m
420
50
320
4,0
3,5
vsml5-0200m
0225m
480
50
380
4,0
3,5
vsml5-0225m
0250m
580
50
480
4,0
3,5
vsml5-0250m
0280m
540
50
440
4,0
3,5
vsml5-0280m
0315m
600
50
500
4,0
3,5
vsml5-0315m
0355m
650
50
550
4,0
6,0
vsml5-0355m
0400m
750 (770)*
50 (60)*
650
4,0
6,0
vsml5-0400m
0450m
850
50
750
4,0
6,0
vsml5-0450m
0500m
950
50
850
4,0
6,0
vsml5-0500m
PVDF
d
 L
 L1
 L2
 s PVC
 s PP-Basis
 Obj.kód
 Poptávka
0110m
270
40
190
3,0
3,5
vsml6-0110m
0125m
300
40
220
3,0
3,5
vsml6-0125m
0140m
320
40
240
3,0
3,5
vsml6-0140m
0160m
360
40
280
4,0
3,5
vsml6-0160m
0180m
380
40
300
4,0
3,5
vsml6-0180m
0200m
420
50
320
4,0
3,5
vsml6-0200m
0225m
480
50
380
4,0
3,5
vsml6-0225m
0250m
580
50
480
4,0
3,5
vsml6-0250m
0280m
540
50
440
4,0
3,5
vsml6-0280m
0315m
600
50
500
4,0
3,5
vsml6-0315m
0355m
650
50
550
4,0
6,0
vsml6-0355m
0400m
750 (770)*
50 (60)*
650
4,0
6,0
vsml6-0400m
0450m
850
50
750
4,0
6,0
vsml6-0450m
0500m
950
50
850
4,0
6,0
vsml6-0500m
PVC-UV
d
 L
 L1
 L2
 s PVC
 s PP-Basis
 Obj.kód
 Poptávka
0110m
270
40
190
3,0
3,5
vsml9-0110m
0125m
300
40
220
3,0
3,5
vsml9-0125m
0140m
320
40
240
3,0
3,5
vsml9-0140m
0160m
360
40
280
4,0
3,5
vsml9-0160m
0180m
380
40
300
4,0
3,5
vsml9-0180m
0200m
420
50
320
4,0
3,5
vsml9-0200m
0225m
480
50
380
4,0
3,5
vsml9-0225m
0250m
580
50
480
4,0
3,5
vsml9-0250m
0280m
540
50
440
4,0
3,5
vsml9-0280m
0315m
600
50
500
4,0
3,5
vsml9-0315m
0355m
650
50
550
4,0
6,0
vsml9-0355m
0400m
750 (770)*
50 (60)*
650
4,0
6,0
vsml9-0400m
0450m
850
50
750
4,0
6,0
vsml9-0450m
0500m
950
50
850
4,0
6,0
vsml9-0500m
