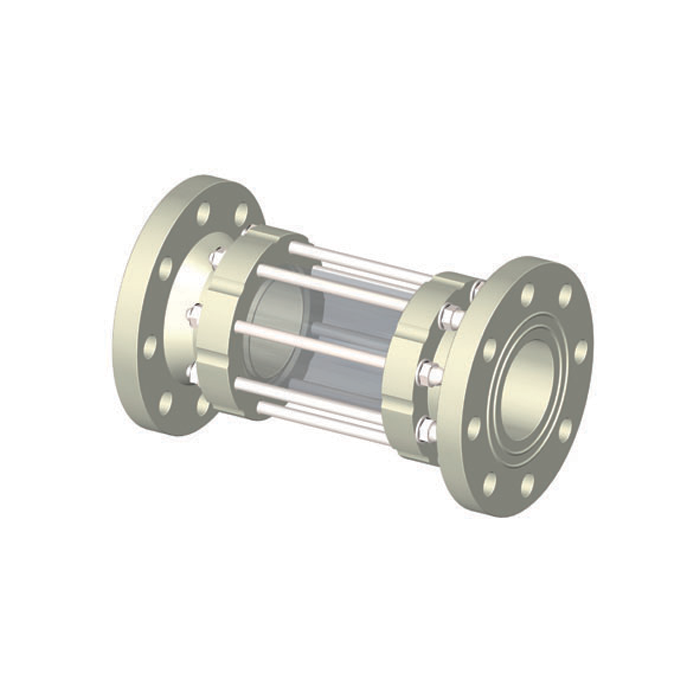

PP-H sight glass, with ANSI* flanges
Popis
* DIN = EN1092-1 PN10/16 ANSI = ASME B16.5 Class 150
|
d (mm) |
DN (mm) |
DN (inch) |
L (mm) |
H (mm) |
PN (bar) |
Obj.kód |
Poptávka |
|---|---|---|---|---|---|---|---|
|
32
|
25
|
1''
|
160
|
57.5
|
10
|
2030-02GGE
|
|
|
40
|
32
|
1''1/4
|
180
|
70
|
10
|
2030-03GGE
|
|
|
50
|
40
|
1''1/2
|
200
|
75
|
10
|
2030-04GGE
|
|
|
63
|
50
|
2''
|
230
|
82.5
|
10
|
2030-05GGE
|
|
|
75
|
65
|
2''1/2
|
290
|
92.5
|
10
|
2030-06GGE
|
|
|
90
|
80
|
3''
|
310
|
100
|
7
|
2030-07GGE
|
|
|
110
|
100
|
4''
|
350
|
110
|
6
|
2030-08GGE
|
|
|
125
|
125
|
5''
|
400
|
125
|
5
|
2030-09GGE
|
|
d (mm) |
DN (mm) |
DN (inch) |
L (mm) |
H (mm) |
PN (bar) |
Obj.kód |
Poptávka |
|---|---|---|---|---|---|---|---|
|
32
|
25
|
1''
|
160
|
57.5
|
10
|
2030-02GGV
|
|
|
40
|
32
|
1''1/4
|
180
|
70
|
10
|
2030-03GGV
|
|
|
50
|
40
|
1''1/2
|
200
|
75
|
10
|
2030-04GGV
|
|
|
63
|
50
|
2''
|
230
|
82.5
|
10
|
2030-05GGV
|
|
|
75
|
65
|
2''1/2
|
290
|
92.5
|
10
|
2030-06GGV
|
|
|
90
|
80
|
3''
|
310
|
100
|
7
|
2030-07GGV
|
|
|
110
|
100
|
4''
|
350
|
110
|
6
|
2030-08GGV
|
|
|
125
|
125
|
5''
|
400
|
125
|
5
|
2030-09GGV
|
