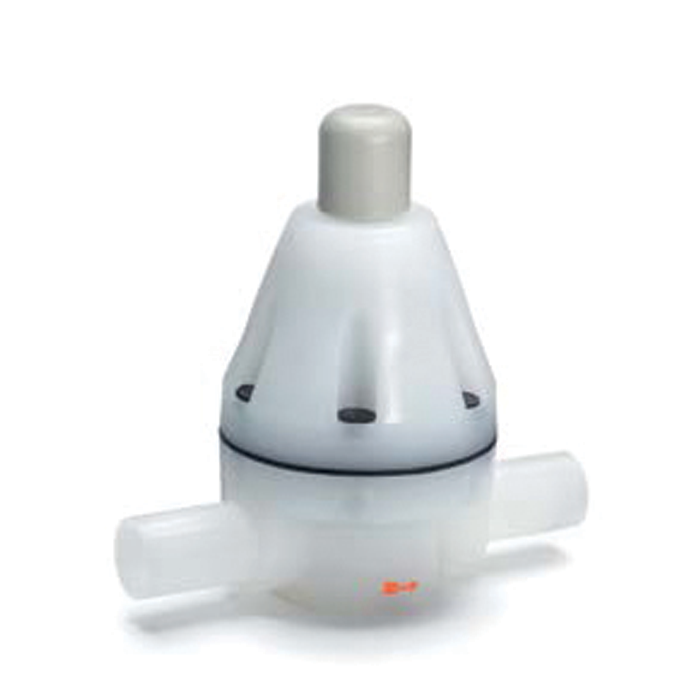

Pressure retaining valve in PVDF, with DIN* flanges
Popis
* DIN = EN1092-1 PN10/16
|
d (mm) |
DN (mm) |
DN (inch) |
L1 (mm) |
H (mm) |
PN (bar) |
(bar) |
Obj.kód |
Poptávka |
|---|---|---|---|---|---|---|---|---|
|
15
|
10
|
3/8''
|
168
|
137
|
10
|
0.5 - 10
|
V186PVDF-10FFP
|
|
|
20
|
15
|
1/2''
|
168
|
137
|
10
|
0.5 - 10
|
V186PVDF-15FFP
|
|
|
25
|
20
|
3/4''
|
168
|
137
|
10
|
0.5 - 10
|
V186PVDF-20FFP
|
|
|
32
|
25
|
1''
|
208
|
199
|
10
|
0.5 - 10
|
V186PVDF-25FFP
|
|
|
40
|
32
|
1''1/4
|
212
|
199
|
10
|
0.5 - 10
|
V186PVDF-32FFP
|
|
|
50
|
40
|
1''1/2
|
266
|
290
|
10
|
0.5 - 10
|
V186PVDF-40FFP
|
|
|
63
|
50
|
2''
|
266
|
290
|
10
|
0.5 - 10
|
V186PVDF-50FFP
|
