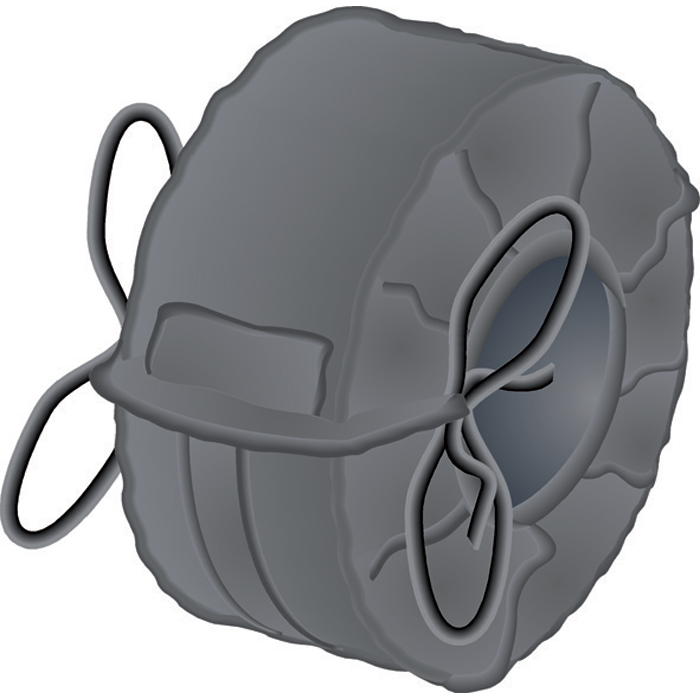

Safety shield, for DIN/ANSI/BS* flanged valve, in PP, black
Popis
* DIN = EN1092-1 PN10/16 ANSI = ASME B16.5 Class 150 BS = BS10 table D
Taylor made safety shields : please contact us
|
DN (mm) |
DN (inch) |
L (mm) |
H (mm) |
Obj.kód |
Poptávka |
|---|---|---|---|---|---|
|
15
|
1/2''
|
390
|
140
|
2090-00PP
|
|
|
20
|
3/4''
|
440
|
150
|
2090-01PP
|
|
|
25
|
1''
|
460
|
160
|
2090-02PP
|
|
|
32
|
1''1/4
|
540
|
180
|
2090-03PP
|
|
|
40
|
1''1/2
|
570
|
180
|
2090-04PP
|
|
|
50
|
2''
|
630
|
190
|
2090-05PP
|
|
|
65
|
2''1/2
|
690
|
200
|
2090-06PP
|
|
|
80
|
3''
|
730
|
200
|
2090-07PP
|
|
|
100
|
4''
|
800
|
200
|
2090-08PP
|
|
|
125
|
5''
|
900
|
210
|
2090-09PP
|
|
|
150
|
6''
|
1020
|
220
|
2090-10PP
|
|
|
200
|
8''
|
1150
|
230
|
2090-11PP
|
|
|
250
|
10''
|
1350
|
240
|
2090-12PP
|
|
|
300
|
12''
|
1530
|
240
|
2090-13PP
|
