Steel reinforced PPGF ANSI* stub flange
Popis
* DIN = EN1092-1 PN10 ANSI = ASME B16.5 Class 150
|

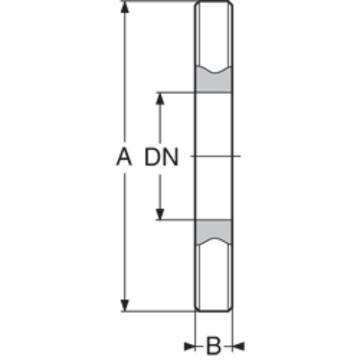

d (mm) |
DN (mm) |
DN (inch) |
A (mm) |
B (mm) |
Obj.kód |
Poptávka |
|---|---|---|---|---|---|---|
|
20
|
15
|
1/2''
|
95
|
12
|
2019A10T
|
|
|
25
|
20
|
3/4''
|
105
|
12
|
2019A11T
|
|
|
32
|
25
|
1''
|
112
|
16
|
2019A12T
|
|
|
40
|
32
|
1''1/4
|
130
|
16
|
2019A13T
|
|
|
50
|
40
|
1''1/2
|
132
|
18
|
2019A14T
|
|
|
63
|
50
|
2''
|
160
|
18
|
2019A15T
|
|
|
75
|
65
|
2''1/2
|
178
|
18
|
2019A16T
|
|
|
90
|
80
|
3''
|
190
|
18
|
2019A17T
|
|
|
110
|
100
|
4''
|
229
|
18
|
2019A18T
|
|
|
140
|
125
|
5''
|
0
|
-
|
2019A19T
|
|
|
160
|
150
|
6''
|
279
|
24
|
2019A20T
|
|
|
225
|
200
|
8''
|
0
|
-
|
2019A21T
|
|
|
250
|
250
|
10''
|
406
|
34
|
2019A22T
|
|
|
315
|
300
|
12''
|
483
|
34
|
2019A23T
|
