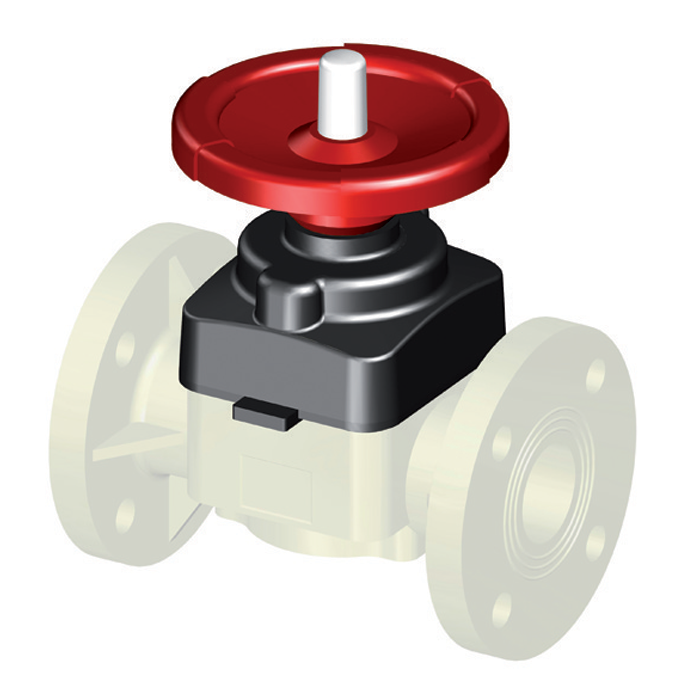

PVDF diaphragm valve, with DIN* flanges

Katalogový list

Popis

* DIN = EN1092-1 PN10/16 ANSI = ASME B16.5 Class 150 2300 becomes 2307 when fitted with a double acting pneumatic actuator 2300 becomes 2308 when fitted with failsafe open (NO) pneumatic actuator 2300 becomes 2309 when fitted with failsafe closed (NC) pneumatic actuator
PVDF diaphragm valve, with DIN* flanges
PVDF diaphragm valve, with DIN* flanges
EPDM
d
(mm) 		DN
(mm) 		DN
(inch) 		L
(mm) 		H
(mm) 		PN
(bar) 		Obj.kód
 Poptávka
20
15
1/2''
130
133
10
2200-00FFE
25
20
3/4''
150
133
10
2200-01FFE
32
25
1''
160
133
10
2200-02FFE
40
32
1''1/4
180
167
10
2200-03FFE
50
40
1''1/2
200
167
10
2200-04FFE
63
50
2''
230
205
10
2200-05FFE
FPM
d
(mm) 		DN
(mm) 		DN
(inch) 		L
(mm) 		H
(mm) 		PN
(bar) 		Obj.kód
 Poptávka
20
15
1/2''
130
133
10
2200-00FFZ
25
20
3/4''
150
133
10
2200-01FFZ
32
25
1''
160
133
10
2200-02FFZ
40
32
1''1/4
180
167
10
2200-03FFZ
50
40
1''1/2
200
167
10
2200-04FFZ
63
50
2''
230
205
10
2200-05FFZ
PTFE
d
(mm) 		DN
(mm) 		DN
(inch) 		L
(mm) 		H
(mm) 		PN
(bar) 		Obj.kód
 Poptávka
20
15
1/2''
130
133
10
2200-00FFP
25
20
3/4''
150
133
10
2200-01FFP
32
25
1''
160
133
10
2200-02FFP
40
32
1''1/4
180
167
10
2200-03FFP
50
40
1''1/2
200
167
10
2200-04FFP
63
50
2''
230
205
10
2200-05FFP
