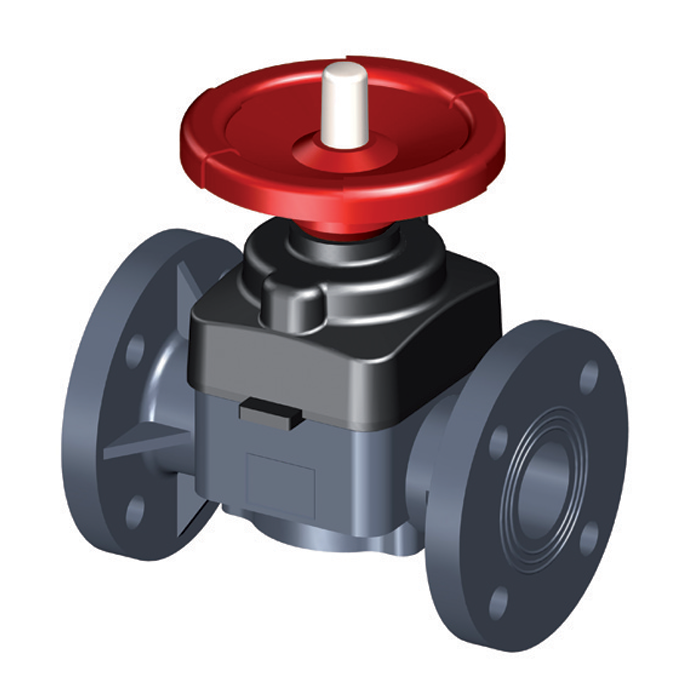

PVC-U diaphragm valve, with DIN* flanges

Katalogový list

Popis

* DIN = EN1092-1 PN10/16 ANSI = ASME B16.5 Class 150 2300 becomes 2307 when fitted with a double acting pneumatic actuator 2300 becomes 2308 when fitted with failsafe open (NO) pneumatic actuator 2300 becomes 2309 when fitted with failsafe closed (NC) pneumatic actuator
PVC-U diaphragm valve, with DIN* flanges
PVC-U diaphragm valve, with DIN* flanges
EPDM
d
(mm) 		DN
(mm) 		DN
(inch) 		L
(mm) 		H
(mm) 		PN
(bar) 		Obj.kód
 Poptávka
20
15
1/2''
130
133
10
2300-00FFE
25
20
3/4''
150
133
10
2300-01FFE
32
25
1''
160
133
10
2300-02FFE
40
32
1''1/4
180
167
10
2300-03FFE
50
40
1''1/2
200
167
10
2300-04FFE
63
50
2''
230
205
10
2300-05FFE
FPM
d
(mm) 		DN
(mm) 		DN
(inch) 		L
(mm) 		H
(mm) 		PN
(bar) 		Obj.kód
 Poptávka
20
15
1/2''
130
133
10
2300-00FFZ
25
20
3/4''
150
133
10
2300-01FFZ
32
25
1''
160
133
10
2300-02FFZ
40
32
1''1/4
180
167
10
2300-03FFZ
50
40
1''1/2
200
167
10
2300-04FFZ
63
50
2''
230
205
10
2300-05FFZ
PTFE
d
(mm) 		DN
(mm) 		DN
(inch) 		L
(mm) 		H
(mm) 		PN
(bar) 		Obj.kód
 Poptávka
20
15
1/2''
130
133
10
2300-00FFP
25
20
3/4''
150
133
10
2300-01FFP
32
25
1''
160
133
10
2300-02FFP
40
32
1''1/4
180
167
10
2300-03FFP
50
40
1''1/2
200
167
10
2300-04FFP
63
50
2''
230
205
10
2300-05FFP
