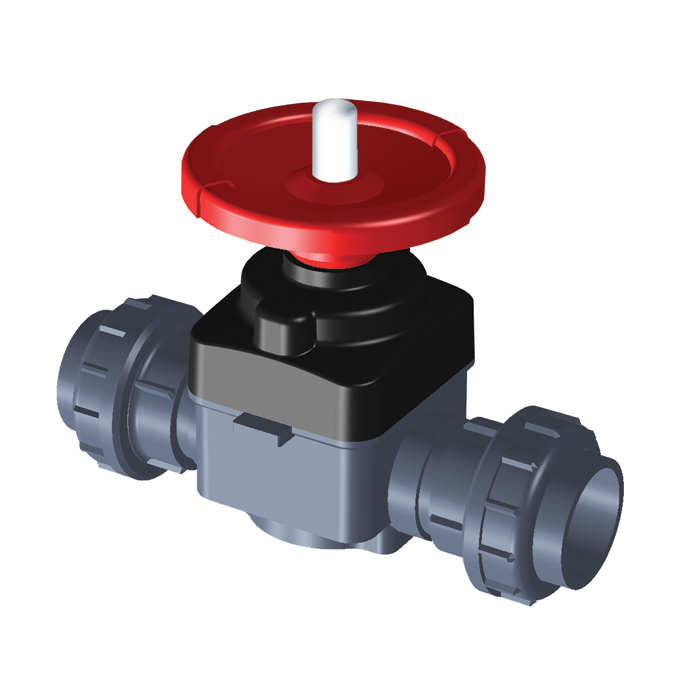

PVC-U diaphragm valve, double union, PVC-U metric sockets
Popis
2300 becomes 2307 when fitted with a double acting pneumatic actuator
2300 becomes 2308 when fitted with failsafe open (NO) pneumatic actuator
2300 becomes 2309 when fitted with failsafe closed (NC) pneumatic actuator
|
d (mm) |
DN (mm) |
DN (inch) |
L (mm) |
L2 (mm) |
H (mm) |
B (mm) |
PN (bar) |
Obj.kód |
Poptávka |
|---|---|---|---|---|---|---|---|---|---|
|
20
|
15
|
1/2''
|
184
|
142
|
133
|
16
|
10
|
2300-00BBE
|
|
|
25
|
20
|
3/4''
|
208.5
|
159.5
|
133
|
19.5
|
10
|
2300-01BBE
|
|
|
32
|
25
|
1''
|
225
|
172
|
133
|
23.5
|
10
|
2300-02BBE
|
|
|
40
|
32
|
1''1/4
|
259
|
197
|
167
|
26.5
|
10
|
2300-03BBE
|
|
|
50
|
40
|
1''1/2
|
291
|
216
|
167
|
31.5
|
10
|
2300-04BBE
|
|
|
63
|
50
|
2''
|
342
|
254
|
205
|
39
|
10
|
2300-05BBE
|
|
d (mm) |
DN (mm) |
DN (inch) |
L (mm) |
L2 (mm) |
H (mm) |
B (mm) |
PN (bar) |
Obj.kód |
Poptávka |
|---|---|---|---|---|---|---|---|---|---|
|
20
|
15
|
1/2''
|
184
|
142
|
133
|
16
|
10
|
2300-00BBZ
|
|
|
25
|
20
|
3/4''
|
208.5
|
159.5
|
133
|
19.5
|
10
|
2300-01BBZ
|
|
|
32
|
25
|
1''
|
225
|
172
|
133
|
23.5
|
10
|
2300-02BBZ
|
|
|
40
|
32
|
1''1/4
|
259
|
197
|
167
|
26.5
|
10
|
2300-03BBZ
|
|
|
50
|
40
|
1''1/2
|
291
|
216
|
167
|
31.5
|
10
|
2300-04BBZ
|
|
|
63
|
50
|
2''
|
342
|
254
|
205
|
39
|
10
|
2300-05BBZ
|
|
d (mm) |
DN (mm) |
DN (inch) |
L (mm) |
L2 (mm) |
H (mm) |
B (mm) |
PN (bar) |
Obj.kód |
Poptávka |
|---|---|---|---|---|---|---|---|---|---|
|
20
|
15
|
1/2''
|
184
|
142
|
133
|
16
|
10
|
2300-00BBP
|
|
|
25
|
20
|
3/4''
|
208.5
|
159.5
|
133
|
19.5
|
10
|
2300-01BBP
|
|
|
32
|
25
|
1''
|
225
|
172
|
133
|
23.5
|
10
|
2300-02BBP
|
|
|
40
|
32
|
1''1/4
|
259
|
197
|
167
|
26.5
|
10
|
2300-03BBP
|
|
|
50
|
40
|
1''1/2
|
291
|
216
|
167
|
31.5
|
10
|
2300-04BBP
|
|
|
63
|
50
|
2''
|
342
|
254
|
205
|
39
|
10
|
2300-05BBP
|
