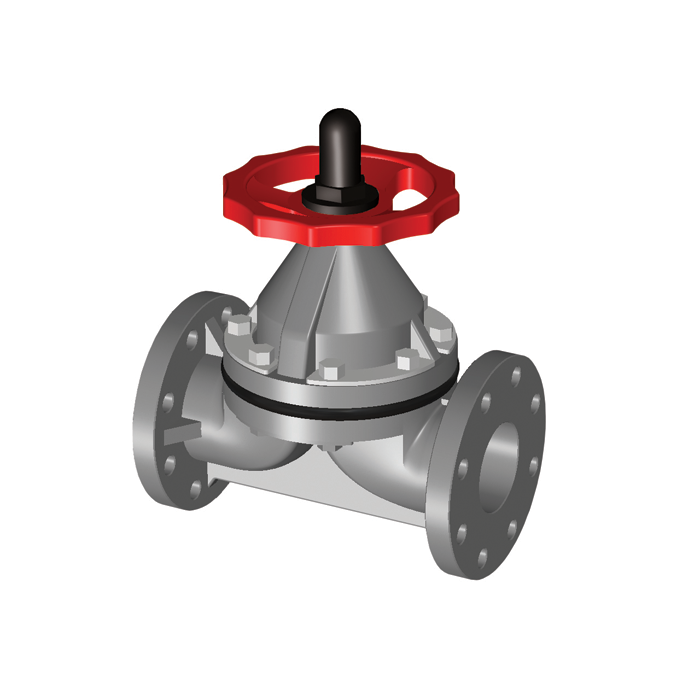

PVC-C diaphragm valve, with ANSI* flanges
Popis
* DIN = EN1092-1 PN10 ANSI = ASME B16.5 Class 150
|
d (mm) |
DN (mm) |
DN (inch) |
L (mm) |
H (mm) |
PN (bar) |
Obj.kód |
Poptávka |
|---|---|---|---|---|---|---|---|
|
75
|
65
|
2''1/2
|
290
|
276
|
10
|
3211-06GGE
|
|
|
90
|
80
|
3''
|
310
|
293
|
10
|
3211-07GGE
|
|
|
110
|
100
|
4''
|
350
|
370
|
10
|
3211-08GGE
|
|
|
125
|
125
|
5''
|
400
|
412
|
5
|
3211-09GGE
|
|
|
160
|
150
|
6''
|
480
|
471
|
5
|
3211-10FFE
|
|
|
225
|
200
|
8''
|
600
|
625
|
3
|
3211-11GGE
|
|
|
280
|
250
|
10''
|
680
|
750
|
3
|
3211-12GGE
|
|
d (mm) |
DN (mm) |
DN (inch) |
L (mm) |
H (mm) |
PN (bar) |
Obj.kód |
Poptávka |
|---|---|---|---|---|---|---|---|
|
75
|
65
|
2''1/2
|
290
|
276
|
5
|
3211-06GGP
|
|
|
90
|
80
|
3''
|
310
|
293
|
5
|
3211-07GGP
|
|
|
110
|
100
|
4''
|
350
|
370
|
5
|
3211-08GGP
|
|
|
125
|
125
|
5''
|
400
|
412
|
4
|
3211-09GGP
|
|
|
160
|
150
|
6''
|
480
|
471
|
4
|
3211-10FFP
|
|
|
225
|
200
|
8''
|
600
|
625
|
2
|
3211-11GGP
|
|
|
280
|
250
|
10''
|
680
|
750
|
2
|
3211-12GGP
|
