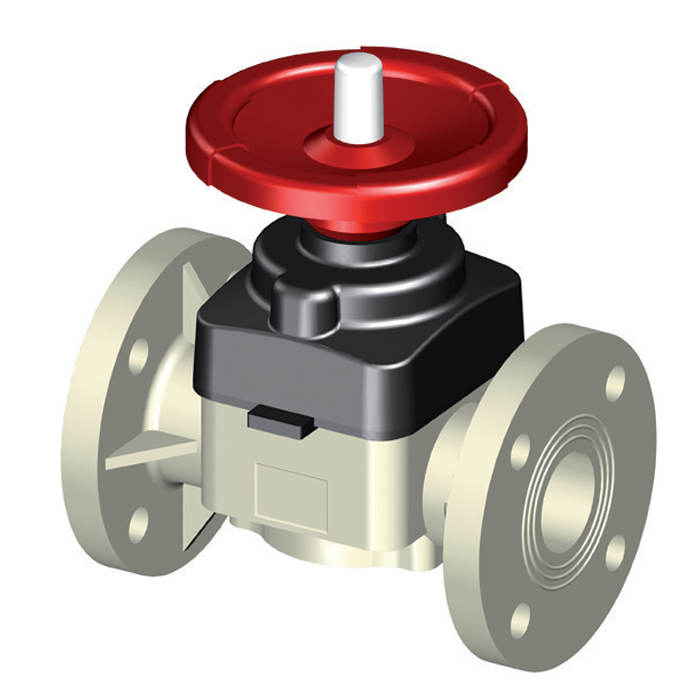

PP-H diaphragm valve, with ANSI* flanges

Katalogový list

Popis

* DIN = EN1092-1 PN10/16 ANSI = ASME B16.5 Class 150 2300 becomes 2307 when fitted with a double acting pneumatic actuator 2300 becomes 2308 when fitted with failsafe open (NO) pneumatic actuator 2300 becomes 2309 when fitted with failsafe closed (NC) pneumatic actuator
PP-H diaphragm valve, with ANSI* flanges
PP-H diaphragm valve, with ANSI* flanges
EPDM
d
(mm) 		DN
(mm) 		DN
(inch) 		L
(mm) 		H
(mm) 		PN
(bar) 		Obj.kód
 Poptávka
20
15
1/2''
130
133
10
2100-00GGE
25
20
3/4''
150
133
10
2100-01GGE
32
25
1''
160
133
10
2100-02GGE
40
32
1''1/4
180
167
10
2100-03GGE
50
40
1''1/2
200
167
10
2100-04GGE
63
50
2''
230
205
10
2100-05GGE
FPM
d
(mm) 		DN
(mm) 		DN
(inch) 		L
(mm) 		H
(mm) 		PN
(bar) 		Obj.kód
 Poptávka
20
15
1/2''
130
133
10
2100-00GGZ
25
20
3/4''
150
133
10
2100-01GGZ
32
25
1''
160
133
10
2100-02GGZ
40
32
1''1/4
180
167
10
2100-03GGZ
50
40
1''1/2
200
167
10
2100-04GGZ
63
50
2''
230
205
10
2100-05GGZ
PTFE
d
(mm) 		DN
(mm) 		DN
(inch) 		L
(mm) 		H
(mm) 		PN
(bar) 		Obj.kód
 Poptávka
20
15
1/2''
130
133
10
2100-00GGP
25
20
3/4''
150
133
10
2100-01GGP
32
25
1''
160
133
10
2100-02GGP
40
32
1''1/4
180
167
10
2100-03GGP
50
40
1''1/2
200
167
10
2100-04GGP
63
50
2''
230
205
10
2100-05GGP
