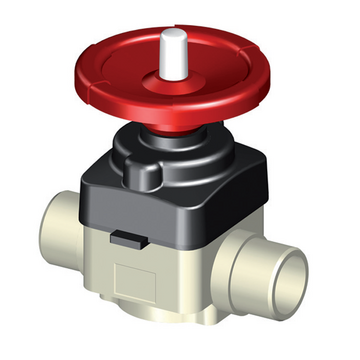

PP-H diaphragm valve, PP-H metric spigot outlets

Katalogový list

Popis

2300 becomes 2307 when fitted with a double acting pneumatic actuator 2300 becomes 2308 when fitted with failsafe open (NO) pneumatic actuator 2300 becomes 2309 when fitted with failsafe closed (NC) pneumatic actuator
PP-H diaphragm valve, PP-H metric spigot outlets
PP-H diaphragm valve, PP-H metric spigot outlets
EPDM
d
(mm) 		DN
(mm) 		DN
(inch) 		L
(mm) 		H
(mm) 		B
(mm) 		PN
(bar) 		Obj.kód
 Poptávka
20
15
1/2''
124
133
17
10
2100-00ZZE
25
20
3/4''
144
133
19.5
10
2100-01ZZE
32
25
1''
154
133
23.5
10
2100-02ZZE
40
32
1''1/4
174
167
27
10
2100-03ZZE
50
40
1''1/2
194
167
32
10
2100-04ZZE
63
50
2''
224
205
39
10
2100-05ZZE
FPM
d
(mm) 		DN
(mm) 		DN
(inch) 		L
(mm) 		H
(mm) 		B
(mm) 		PN
(bar) 		Obj.kód
 Poptávka
20
15
1/2''
124
133
17
10
2100-00ZZZ
25
20
3/4''
144
133
19.5
10
2100-01ZZZ
32
25
1''
154
133
23.5
10
2100-02ZZZ
40
32
1''1/4
174
167
27
10
2100-03ZZZ
50
40
1''1/2
194
167
32
10
2100-04ZZZ
63
50
2''
224
205
39
10
2100-05ZZZ
PTFE
d
(mm) 		DN
(mm) 		DN
(inch) 		L
(mm) 		H
(mm) 		B
(mm) 		PN
(bar) 		Obj.kód
 Poptávka
20
15
1/2''
124
133
17
10
2100-00ZZP
25
20
3/4''
144
133
19.5
10
2100-01ZZP
32
25
1''
154
133
23.5
10
2100-02ZZP
40
32
1''1/4
174
167
27
10
2100-03ZZP
50
40
1''1/2
194
167
32
10
2100-04ZZP
63
50
2''
224
205
39
10
2100-05ZZP
