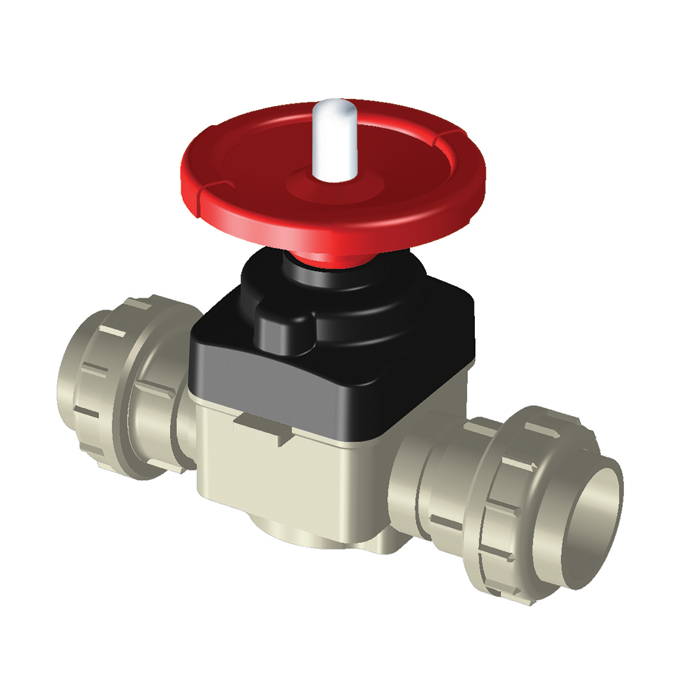

PP-H diaphragm valve, double union, PP-H metric sockets

Katalogový list

Popis

2300 becomes 2307 when fitted with a double acting pneumatic actuator 2300 becomes 2308 when fitted with failsafe open (NO) pneumatic actuator 2300 becomes 2309 when fitted with failsafe closed (NC) pneumatic actuator
PP-H diaphragm valve, double union, PP-H metric sockets
PP-H diaphragm valve, double union, PP-H metric sockets
EPDM
d
(mm) 		DN
(mm) 		DN
(inch) 		L
(mm) 		L2
(mm) 		H
(mm) 		B
(mm) 		PN
(bar) 		Obj.kód
 Poptávka
20
15
1/2''
194.5
151.5
133
16
10
2100-00CCE
25
20
3/4''
216.5
169.5
133
18
10
2100-01CCE
32
25
1''
232.5
182
133
20
10
2100-02CCE
40
32
1''1/4
262
205.5
167
22
10
2100-03CCE
50
40
1''1/2
291
227
167
25.5
10
2100-04CCE
63
50
2''
326.5
256
205
29
10
2100-05CCE
FPM
d
(mm) 		DN
(mm) 		DN
(inch) 		L
(mm) 		L2
(mm) 		H
(mm) 		B
(mm) 		PN
(bar) 		Obj.kód
 Poptávka
20
15
1/2''
194.5
151.5
133
16
10
2100-00CCZ
25
20
3/4''
216.5
169.5
133
18
10
2100-01CCZ
32
25
1''
232.5
182
133
20
10
2100-02CCZ
40
32
1''1/4
262
205.5
167
22
10
2100-03CCZ
50
40
1''1/2
291
227
167
25.5
10
2100-04CCZ
63
50
2''
326.5
256
205
29
10
2100-05CCZ
PTFE
d
(mm) 		DN
(mm) 		DN
(inch) 		L
(mm) 		L2
(mm) 		H
(mm) 		B
(mm) 		PN
(bar) 		Obj.kód
 Poptávka
20
15
1/2''
194.5
151.5
133
16
10
2100-00CCP
25
20
3/4''
216.5
169.5
133
18
10
2100-01CCP
32
25
1''
232.5
182
133
20
10
2100-02CCP
40
32
1''1/4
262
205.5
167
22
10
2100-03CCP
50
40
1''1/2
291
227
167
25.5
10
2100-04CCP
63
50
2''
326.5
256
205
29
10
2100-05CCP
