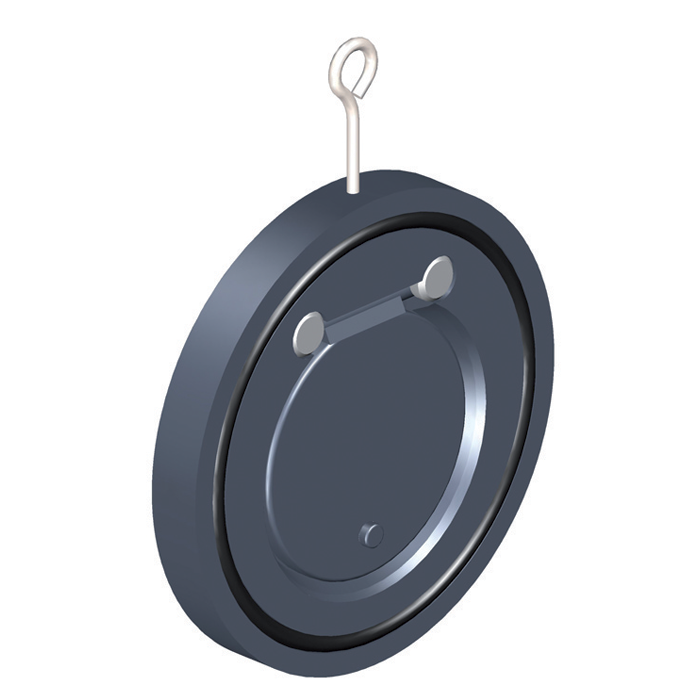

DIN* wafer PVC-U swing check valve with SS316 spring

Katalogový list

Popis

* DIN = EN1092-1 PN10 ANSI = ASME B16.5 Class 150 The dimension H is for a DIN valve. For an ANSI valve, check the product sheet.
DIN* wafer PVC-U swing check valve with SS316 spring
DIN* wafer PVC-U swing check valve with SS316 spring
EPDM
d
(mm) 		DN
(mm) 		DN
(inch) 		L
(mm) 		H
(mm) 		B
(mm) 		PN
(bar) 		Obj.kód
 Poptávka
40
32
1''1/4
15
85
18
10
4094DR03EP
50
40
1''1/2
16
95
22
10
4094DR04EP
63
50
2''
18
109
32
10
4094DR05EP
75
65
2''1/2
20
129
40
10
4094DR06EP
90
80
3''
20
144
54
10
4094DR07EP
110
100
4''
23
164
70
10
4094DR08EP
140
125
5''
23
195
92
10
4094DR09EP
160
150
6''
26
220
105
6
4094DR10EP
225
200
8''
34
275
154
6
4094DR11EP
280
250
10''
40
330
192
5
4094DR12EP
315
300
12''
45
380
227
5
4094DR13EP
355
350
14''
49
440
266
3
4094DR14EP
400
400
15''
65
491
310
3
4094DR15EP
450
450
16''
78
541
350
3
4094DR16EP
500
500
20''
78
596
400
3
4094DR17EP
FPM
d
(mm) 		DN
(mm) 		DN
(inch) 		L
(mm) 		H
(mm) 		B
(mm) 		PN
(bar) 		Obj.kód
 Poptávka
40
32
1''1/4
15
85
18
10
4094DR03VT
50
40
1''1/2
16
95
22
10
4094DR04VT
63
50
2''
18
109
32
10
4094DR05VT
75
65
2''1/2
20
129
40
10
4094DR06VT
90
80
3''
20
144
54
10
4094DR07VT
110
100
4''
23
164
70
10
4094DR08VT
140
125
5''
23
195
92
10
4094DR09VT
160
150
6''
26
220
105
6
4094DR10VT
225
200
8''
34
275
154
6
4094DR11VT
280
250
10''
40
330
192
5
4094DR12VT
315
300
12''
45
380
227
5
4094DR13VT
355
350
14''
49
440
266
3
4094DR14VT
400
400
15''
65
491
310
3
4094DR15VT
450
450
16''
78
541
350
3
4094DR16VT
500
500
20''
78
596
400
3
4094DR17VT
