DIN* wafer PVC-U swing check valve

Katalogový list

Popis

* DIN = EN1092-1 PN10 ANSI = ASME B16.5 Class 150 The dimension H is for a DIN valve. For an ANSI valve, check the product sheet.

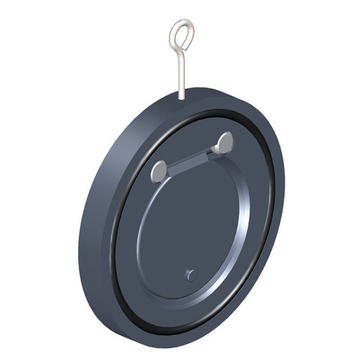

DIN* wafer PVC-U swing check valve
DIN* wafer PVC-U swing check valve
EPDM
d
(mm) 		DN
(mm) 		DN
(inch) 		L
(mm) 		H
(mm) 		B
(mm) 		PN
(bar) 		Obj.kód
 Poptávka
40
32
1''1/4
15
85
18
10
4094D03EP
50
40
1''1/2
16
95
22
10
4094D04EP
63
50
2''
18
109
32
10
4094D05EP
75
65
2''1/2
20
129
40
10
4094D06EP
90
80
3''
20
144
54
10
4094D07EP
110
100
4''
23
164
70
10
4094D08EP
140
125
5''
23
195
92
10
4094D09EP
160
150
6''
26
220
105
6
4094D10EP
225
200
8''
34
275
154
6
4094D11EP
280
250
10''
40
330
192
5
4094D12EP
315
300
12''
45
380
227
5
4094D13EP
355
350
14''
49
440
266
3
4094D14EP
400
400
15''
65
491
310
3
4094D15EP
450
450
16''
78
541
350
3
4094D16EP
500
500
20''
78
596
400
3
4094D17EP
FPM
d
(mm) 		DN
(mm) 		DN
(inch) 		L
(mm) 		H
(mm) 		B
(mm) 		PN
(bar) 		Obj.kód
 Poptávka
40
32
1''1/4
15
85
18
10
4094D03VT
50
40
1''1/2
16
95
22
10
4094D04VT
63
50
2''
18
109
32
10
4094D05VT
75
65
2''1/2
20
129
40
10
4094D06VT
90
80
3''
20
144
54
10
4094D07VT
110
100
4''
23
164
70
10
4094D08VT
140
125
5''
23
195
92
10
4094D09VT
160
150
6''
26
220
105
6
4094D10VT
225
200
8''
34
275
154
6
4094D11VT
280
250
10''
40
330
192
5
4094D12VT
315
300
12''
45
380
227
5
4094D13VT
355
350
14''
49
440
266
3
4094D14VT
400
400
15''
65
491
310
3
4094D15VT
450
450
16''
78
541
350
3
4094D16VT
500
500
20''
78
596
400
3
4094D17VT
