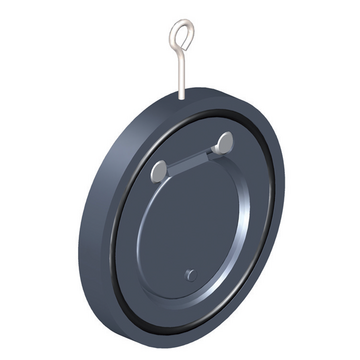

ANSI* wafer PVC-U swing check valve with SS316 spring

Katalogový list

Popis

* DIN = EN1092-1 PN10 ANSI = ASME B16.5 Class 150 The dimension H is for a DIN valve. For an ANSI valve, check the product sheet.
ANSI* wafer PVC-U swing check valve with SS316 spring
ANSI* wafer PVC-U swing check valve with SS316 spring
EPDM
d
(mm) 		DN
(mm) 		DN
(inch) 		L
(mm) 		H
(mm) 		B
(mm) 		PN
(bar) 		Obj.kód
 Poptávka
40
32
1''1/4
15
85
18
10
4094AR03EP
50
40
1''1/2
16
95
22
10
4094AR04EP
63
50
2''
18
109
32
10
4094AR05EP
75
65
2''1/2
20
129
40
10
4094AR06EP
90
80
3''
20
144
54
10
4094AR07EP
110
100
4''
23
164
70
10
4094AR08EP
140
125
5''
23
195
92
10
4094AR09EP
160
150
6''
26
220
105
6
4094DR10EP
225
200
8''
34
275
154
6
4094AR11EP
280
250
10''
40
330
192
5
4094AR12EP
315
300
12''
45
380
227
5
4094AR13EP
355
350
14''
49
440
266
3
4094AR14EP
400
400
15''
65
491
310
3
4094AR15EP
450
450
16''
78
541
350
3
4094AR16EP
500
500
20''
78
596
400
3
4094AR17EP
FPM
d
(mm) 		DN
(mm) 		DN
(inch) 		L
(mm) 		H
(mm) 		B
(mm) 		PN
(bar) 		Obj.kód
 Poptávka
40
32
1''1/4
15
85
18
10
4094AR03VT
50
40
1''1/2
16
95
22
10
4094AR04VT
63
50
2''
18
109
32
10
4094AR05VT
75
65
2''1/2
20
129
40
10
4094AR06VT
90
80
3''
20
144
54
10
4094AR07VT
110
100
4''
23
164
70
10
4094AR08VT
140
125
5''
23
195
92
10
4094AR09VT
160
150
6''
26
220
105
6
4094DR10VT
225
200
8''
34
275
154
6
4094AR11VT
280
250
10''
40
330
192
5
4094AR12VT
315
300
12''
45
380
227
5
4094AR13VT
355
350
14''
49
440
266
3
4094AR14VT
400
400
15''
65
491
310
3
4094AR15VT
450
450
16''
78
541
350
3
4094AR16VT
500
500
20''
78
596
400
3
4094AR17VT
