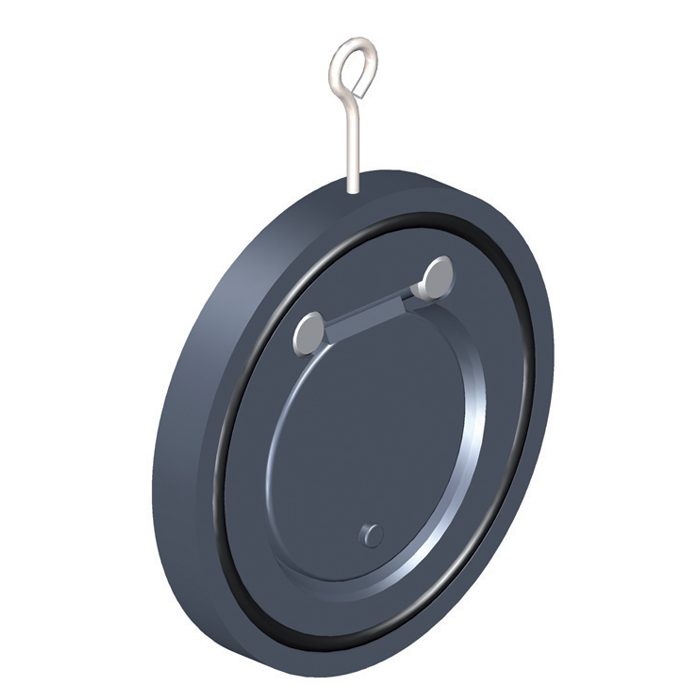

ANSI* wafer PVC-U swing check valve

Katalogový list

Popis

* DIN = EN1092-1 PN10 ANSI = ASME B16.5 Class 150 The dimension H is for a DIN valve. For an ANSI valve, check the product sheet.
ANSI* wafer PVC-U swing check valve
ANSI* wafer PVC-U swing check valve
EPDM
d
(mm) 		DN
(mm) 		DN
(inch) 		L
(mm) 		H
(mm) 		B
(mm) 		PN
(bar) 		Obj.kód
 Poptávka
40
32
1''1/4
15
85
18
10
4094A03EP
50
40
1''1/2
16
95
22
10
4094A04EP
63
50
2''
18
109
32
10
4094A05EP
75
65
2''1/2
20
129
40
10
4094A06EP
90
80
3''
20
144
54
10
4094A07EP
110
100
4''
23
164
70
10
4094A08EP
140
125
5''
23
195
92
10
4094A09EP
160
150
6''
26
220
105
6
4094D10EP
225
200
8''
34
275
154
6
4094A11EP
280
250
10''
40
330
192
5
4094A12EP
315
300
12''
45
380
227
5
4094A13EP
355
350
14''
49
440
266
3
4094A14EP
400
400
15''
65
491
310
3
4094A15EP
450
450
16''
78
541
350
3
4094A16EP
500
500
20''
78
596
400
3
4094A17EP
FPM
d
(mm) 		DN
(mm) 		DN
(inch) 		L
(mm) 		H
(mm) 		B
(mm) 		PN
(bar) 		Obj.kód
 Poptávka
40
32
1''1/4
15
85
18
10
4094A03VT
50
40
1''1/2
16
95
22
10
4094A04VT
63
50
2''
18
109
32
10
4094A05VT
75
65
2''1/2
20
129
40
10
4094A06VT
90
80
3''
20
144
54
10
4094A07VT
110
100
4''
23
164
70
10
4094A08VT
140
125
5''
23
195
92
10
4094A09VT
160
150
6''
26
220
105
6
4094D10VT
225
200
8''
34
275
154
6
4094A11VT
280
250
10''
40
330
192
5
4094A12VT
315
300
12''
45
380
227
5
4094A13VT
355
350
14''
49
440
266
3
4094A14VT
400
400
15''
65
491
310
3
4094A15VT
450
450
16''
78
541
350
3
4094A16VT
500
500
20''
78
596
400
3
4094A17VT
