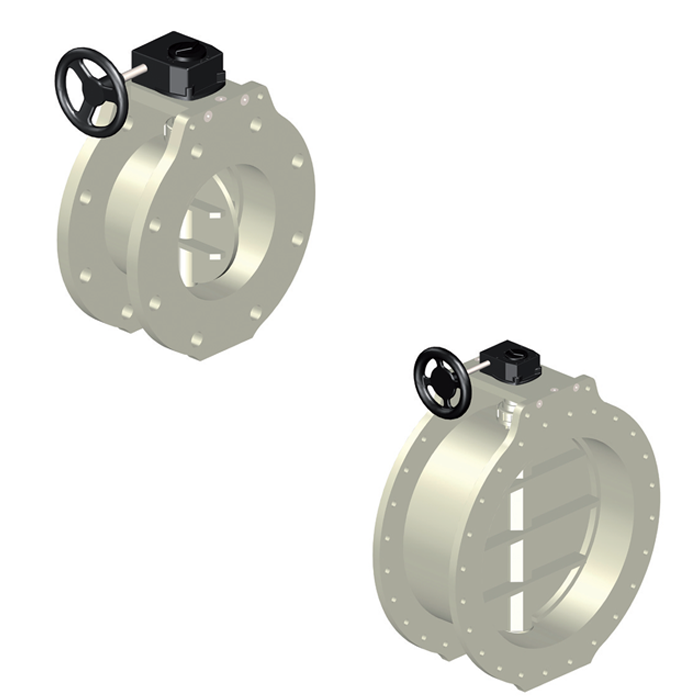

Ventilation damper, PP-H body, PP-H butterfly, ANSI* flanges, with handwheel and reduction gearbox
Popis
* DIN = EN1092-1 PN10 ANSI = ASME B16.5 Class 150 (DN<=600) puis AWWA C207 (DN>700)
Valve with free shaft : 5150 becomes 5151, 5154 becomes 5155
Our dampers with relative airtightness comply with requirement of Class C-2 of EN 1751. See our product sheet for more details
|
DN (mm) |
DN (inch) |
H (mm) |
E (mm) |
Obj.kód |
Poptávka |
|---|---|---|---|---|---|
|
150
|
6''
|
244
|
145
|
5150-10GGP
|
|
|
200
|
8''
|
279
|
145
|
5150-11GGP
|
|
|
250
|
10''
|
309
|
150
|
5150-12GGP
|
|
|
300
|
12''
|
349
|
150
|
5150-13GGP
|
|
|
350
|
14''
|
379
|
150
|
5150-14GGP
|
|
|
400
|
16''
|
419
|
175
|
5150-15GGP
|
|
|
450
|
18''
|
449
|
175
|
5150-16GGP
|
|
|
500
|
20''
|
459
|
300
|
5150-17GGP
|
|
|
600
|
24''
|
529
|
300
|
5150-18GGP
|
|
|
700
|
28''
|
589
|
300
|
5150-19GGP
|
|
|
800
|
32''
|
639
|
300
|
5150-20GGP
|
|
|
900
|
36''
|
689
|
300
|
5150-21GGP
|
|
|
1000
|
40''
|
759
|
300
|
5150-22GGP
|
|
|
1100
|
44''
|
809
|
300
|
5150-23GGP
|
|
|
1200
|
48''
|
869
|
300
|
5150-24GGP
|
|
|
1300
|
52''
|
929
|
300
|
5150-25GGP
|
|
|
1400
|
56''
|
1010
|
300
|
5150-26GGP
|
|
|
1500
|
60''
|
1060
|
400
|
5150-27GGP
|
|
|
1600
|
64''
|
1110
|
400
|
5150-28GGP
|
|
|
1700
|
68''
|
1160
|
400
|
5150-29GGP
|
|
|
1800
|
72''
|
1210
|
400
|
5150-30GGP
|
|
DN (mm) |
DN (inch) |
H (mm) |
E (mm) |
Obj.kód |
Poptávka |
|---|---|---|---|---|---|
|
150
|
6''
|
244
|
145
|
Nous consulter
|
|
|
200
|
8''
|
279
|
145
|
Nous consulter
|
|
|
250
|
10''
|
309
|
150
|
Nous consulter
|
|
|
300
|
12''
|
349
|
150
|
Nous consulter
|
|
|
350
|
14''
|
379
|
150
|
Nous consulter
|
|
|
400
|
16''
|
419
|
175
|
5154-15GGE
|
|
|
450
|
18''
|
449
|
175
|
5154-16GGE
|
|
|
500
|
20''
|
459
|
300
|
5154-17GGE
|
|
|
600
|
24''
|
529
|
300
|
5154-18GGE
|
|
|
700
|
28''
|
589
|
300
|
5154-19GGE
|
|
|
800
|
32''
|
639
|
300
|
5154-20GGE
|
|
|
900
|
36''
|
689
|
300
|
5154-21GGE
|
|
|
1000
|
40''
|
759
|
300
|
5154-22GGE
|
|
|
1100
|
44''
|
809
|
300
|
5154-23GGE
|
|
|
1200
|
48''
|
869
|
300
|
5154-24GGE
|
|
|
1300
|
52''
|
929
|
300
|
5154-25GGE
|
|
|
1400
|
56''
|
1010
|
300
|
5154-26GGE
|
|
|
1500
|
60''
|
1060
|
400
|
5154-27GGE
|
|
|
1600
|
64''
|
1110
|
400
|
5154-28GGE
|
|
|
1700
|
68''
|
1160
|
400
|
5154-29GGE
|
|
|
1800
|
72''
|
1210
|
400
|
5154-30GGE
|
|
DN (mm) |
DN (inch) |
H (mm) |
E (mm) |
Obj.kód |
Poptávka |
|---|---|---|---|---|---|
|
150
|
6''
|
244
|
145
|
Nous consulter
|
|
|
200
|
8''
|
279
|
145
|
Nous consulter
|
|
|
250
|
10''
|
309
|
150
|
Nous consulter
|
|
|
300
|
12''
|
349
|
150
|
Nous consulter
|
|
|
350
|
14''
|
379
|
150
|
Nous consulter
|
|
|
400
|
16''
|
419
|
175
|
5154-15GGV
|
|
|
450
|
18''
|
449
|
175
|
5154-16GGV
|
|
|
500
|
20''
|
459
|
300
|
5154-17GGV
|
|
|
600
|
24''
|
529
|
300
|
5154-18GGV
|
|
|
700
|
28''
|
589
|
300
|
5154-19GGV
|
|
|
800
|
32''
|
639
|
300
|
5154-20GGV
|
|
|
900
|
36''
|
689
|
300
|
5154-21GGV
|
|
|
1000
|
40''
|
759
|
300
|
5154-22GGV
|
|
|
1100
|
44''
|
809
|
300
|
5154-23GGV
|
|
|
1200
|
48''
|
869
|
300
|
5154-24GGV
|
|
|
1300
|
52''
|
929
|
300
|
5154-25GGV
|
|
|
1400
|
56''
|
1010
|
300
|
5154-26GGV
|
|
|
1500
|
60''
|
1060
|
400
|
5154-27GGV
|
|
|
1600
|
64''
|
1110
|
400
|
5154-28GGV
|
|
|
1700
|
68''
|
1160
|
400
|
5154-29GGV
|
|
|
1800
|
72''
|
1210
|
400
|
5154-30GGV
|
