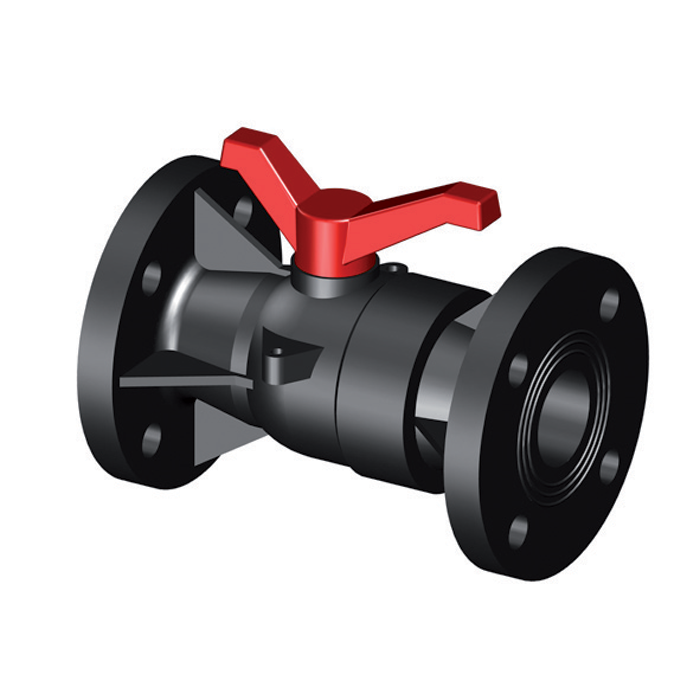

PPGF ball valve, 2-way, DIN* flanged compact
Popis
* DIN = EN1092-1 PN10 ANSI = ASME B16.5 Class 150
To order a DN65 flanged ball valve, order a DN50 valve serie 1003 with assembly of DN65 flange.
|
d (mm) |
DN (mm) |
DN (inch) |
L (mm) |
H (mm) |
PN (bar) |
Obj.kód |
Poptávka |
|---|---|---|---|---|---|---|---|
|
20
|
15
|
1/2''
|
130
|
75
|
10
|
2014-00FFE
|
|
|
25
|
20
|
3/4''
|
150
|
75
|
10
|
2014-01FFE
|
|
|
32
|
25
|
1''
|
160
|
95
|
10
|
2014-02FFE
|
|
|
40
|
32
|
1''1/4
|
180
|
99
|
10
|
2014-03FFE
|
|
|
50
|
40
|
1''1/2
|
200
|
106
|
10
|
2014-04FFE
|
|
|
63
|
50
|
2''
|
230
|
111
|
10
|
2014-05FFE
|
