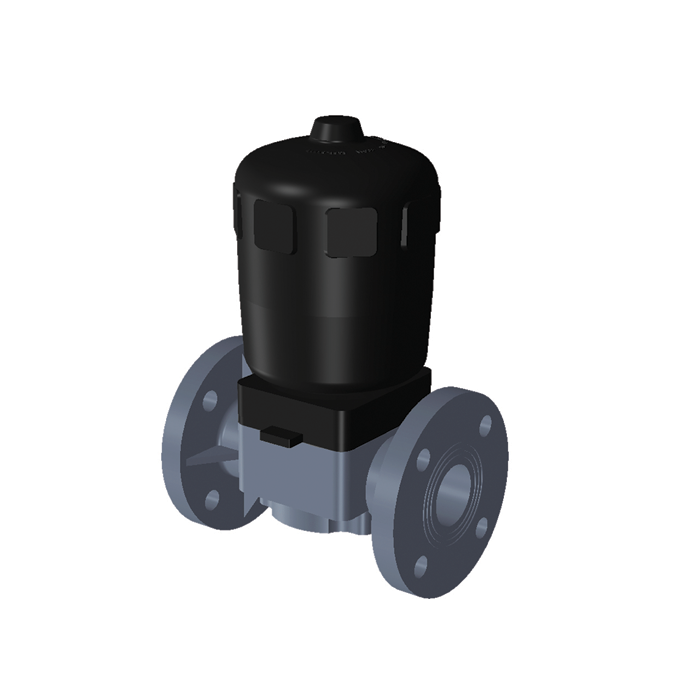

PVC-U diaphragm valve, with DIN* flanges, equipped with double acting (DA) pneumatic actuator
Popis
* DIN = EN1092-1 PN10/16 ANSI = ASME B16.5 Class 150
|
d (mm) |
DN (mm) |
DN (inch) |
L (mm) |
H (mm) |
PN (bar) |
Obj.kód |
Poptávka |
|---|---|---|---|---|---|---|---|
|
20
|
15
|
1/2''
|
130
|
174
|
10
|
2307-00FFE
|
|
|
25
|
20
|
3/4''
|
150
|
174
|
10
|
2307-01FFE
|
|
|
32
|
25
|
1''
|
160
|
174
|
10
|
2307-02FFE
|
|
|
40
|
32
|
1''1/4
|
180
|
236
|
10
|
2307-03FFE
|
|
|
50
|
40
|
1''1/2
|
200
|
236
|
10
|
2307-04FFE
|
|
|
63
|
50
|
2''
|
230
|
283
|
10
|
2307-05FFE
|
|
d (mm) |
DN (mm) |
DN (inch) |
L (mm) |
H (mm) |
PN (bar) |
Obj.kód |
Poptávka |
|---|---|---|---|---|---|---|---|
|
20
|
15
|
1/2''
|
130
|
174
|
10
|
2307-00FFZ
|
|
|
25
|
20
|
3/4''
|
150
|
174
|
10
|
2307-01FFZ
|
|
|
32
|
25
|
1''
|
160
|
174
|
10
|
2307-02FFZ
|
|
|
40
|
32
|
1''1/4
|
180
|
236
|
10
|
2307-03FFZ
|
|
|
50
|
40
|
1''1/2
|
200
|
236
|
10
|
2307-04FFZ
|
|
|
63
|
50
|
2''
|
230
|
283
|
10
|
2307-05FFZ
|
