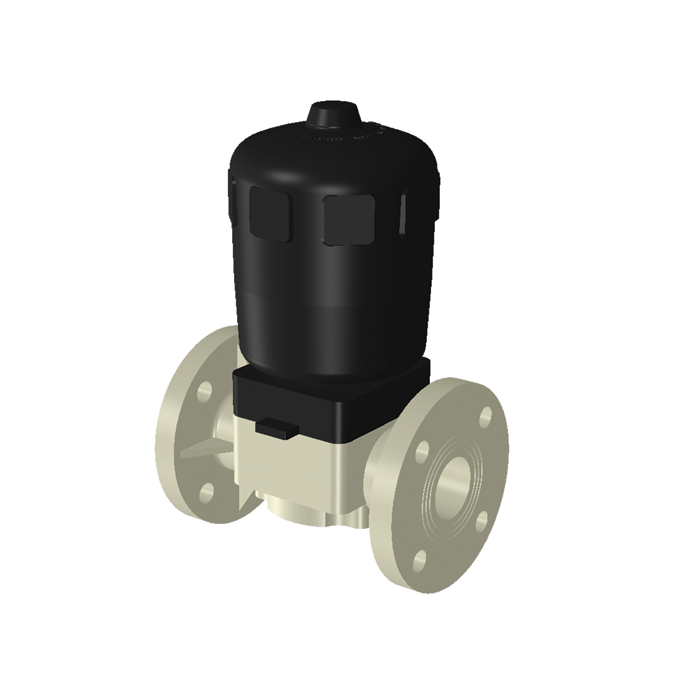

PP-H diaphragm valve, with DIN* flanges, equipped with double acting (DA) pneumatic actuator

Katalogový list

Popis

* DIN = EN1092-1 PN10/16 ANSI = ASME B16.5 Class 150
PP-H diaphragm valve, with DIN* flanges, equipped with double acting (DA) pneumatic actuator
PP-H diaphragm valve, with DIN* flanges, equipped with double acting (DA) pneumatic actuator
EPDM
d
(mm) 		DN
(mm) 		DN
(inch) 		L
(mm) 		H
(mm) 		PN
(bar) 		Obj.kód
 Poptávka
20
15
1/2''
130
174
10
2107-00FFE
25
20
3/4''
150
174
10
2107-01FFE
32
25
1''
160
174
10
2107-02FFE
40
32
1''1/4
180
236
10
2107-03FFE
50
40
1''1/2
200
236
10
2107-04FFE
63
50
2''
230
283
10
2107-05FFE
FPM
d
(mm) 		DN
(mm) 		DN
(inch) 		L
(mm) 		H
(mm) 		PN
(bar) 		Obj.kód
 Poptávka
20
15
1/2''
130
174
10
2107-00FFZ
25
20
3/4''
150
174
10
2107-01FFZ
32
25
1''
160
174
10
2107-02FFZ
40
32
1''1/4
180
236
10
2107-03FFZ
50
40
1''1/2
200
236
10
2107-04FFZ
63
50
2''
230
283
10
2107-05FFZ
PTFE
d
(mm) 		DN
(mm) 		DN
(inch) 		L
(mm) 		H
(mm) 		PN
(bar) 		Obj.kód
 Poptávka
20
15
1/2''
130
174
10
2107-00FFP
25
20
3/4''
150
174
10
2107-01FFP
32
25
1''
160
174
10
2107-02FFP
40
32
1''1/4
180
236
10
2107-03FFP
50
40
1''1/2
200
236
10
2107-04FFP
63
50
2''
230
283
10
2107-05FFP
