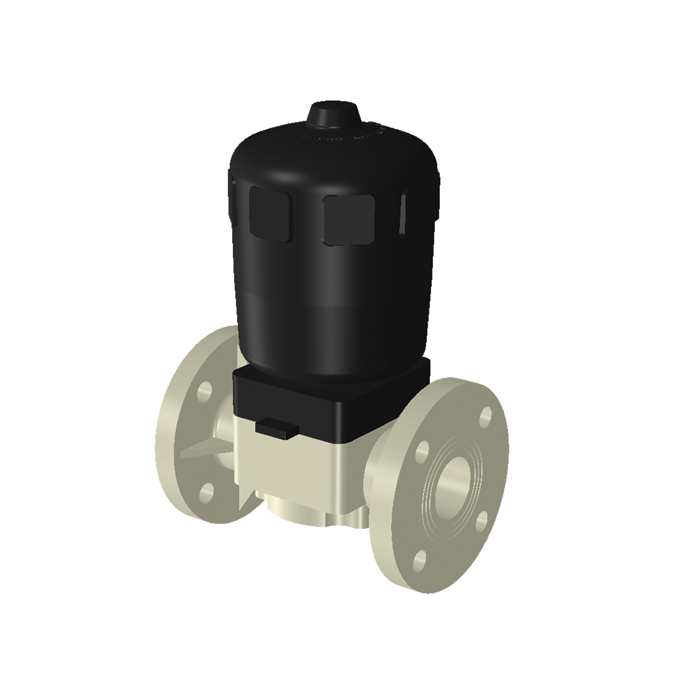

PP-H diaphragm valve, with ANSI* flanges, equipped with double acting (DA) pneumatic actuator

Katalogový list

Popis

* DIN = EN1092-1 PN10/16 ANSI = ASME B16.5 Class 150
PP-H diaphragm valve, with ANSI* flanges, equipped with double acting (DA) pneumatic actuator
PP-H diaphragm valve, with ANSI* flanges, equipped with double acting (DA) pneumatic actuator
EPDM
d
(mm) 		DN
(mm) 		DN
(inch) 		L
(mm) 		H
(mm) 		PN
(bar) 		Obj.kód
 Poptávka
20
15
1/2''
130
174
10
2107-00GGE
25
20
3/4''
150
174
10
2107-01GGE
32
25
1''
160
174
10
2107-02GGE
40
32
1''1/4
180
236
10
2107-03GGE
50
40
1''1/2
200
236
10
2107-04GGE
63
50
2''
230
283
10
2107-05GGE
FPM
d
(mm) 		DN
(mm) 		DN
(inch) 		L
(mm) 		H
(mm) 		PN
(bar) 		Obj.kód
 Poptávka
20
15
1/2''
130
174
10
2107-00GGZ
25
20
3/4''
150
174
10
2107-01GGZ
32
25
1''
160
174
10
2107-02GGZ
40
32
1''1/4
180
236
10
2107-03GGZ
50
40
1''1/2
200
236
10
2107-04GGZ
63
50
2''
230
283
10
2107-05GGZ
PTFE
d
(mm) 		DN
(mm) 		DN
(inch) 		L
(mm) 		H
(mm) 		PN
(bar) 		Obj.kód
 Poptávka
20
15
1/2''
130
174
10
2107-00GGP
25
20
3/4''
150
174
10
2107-01GGP
32
25
1''
160
174
10
2107-02GGP
40
32
1''1/4
180
236
10
2107-03GGP
50
40
1''1/2
200
236
10
2107-04GGP
63
50
2''
230
283
10
2107-05GGP
